V-Bank HEPA Filter Manufacturer
Factory-direct V-Bank HEPA Filters for high-airflow HVAC systems, cleanrooms, pharmaceutical facilities, hospitals, electronics manufacturing, and industrial air handling units.
- V-shaped structure for high airflow and lower pressure drop
- H13 / H14 efficiency options available
- Custom size, frame material, gasket, airflow, and packaging
- Suitable for AHUs, HVAC systems, cleanrooms, and hospitals
- EN 1822 / ISO 29463-based test documentation available on request
- OEM, project orders, and bulk replacement supply supported
V-Bank HEPA Filter Specifications
Our V-Bank HEPA Filters are designed for high-airflow applications where filtration efficiency, pressure drop, dust holding capacity, and service life all matter. The V-shaped media pack increases effective filtration area within a compact frame, making it suitable for AHUs, HVAC systems, cleanrooms, hospitals, pharmaceutical facilities, electronics manufacturing, and industrial ventilation systems.

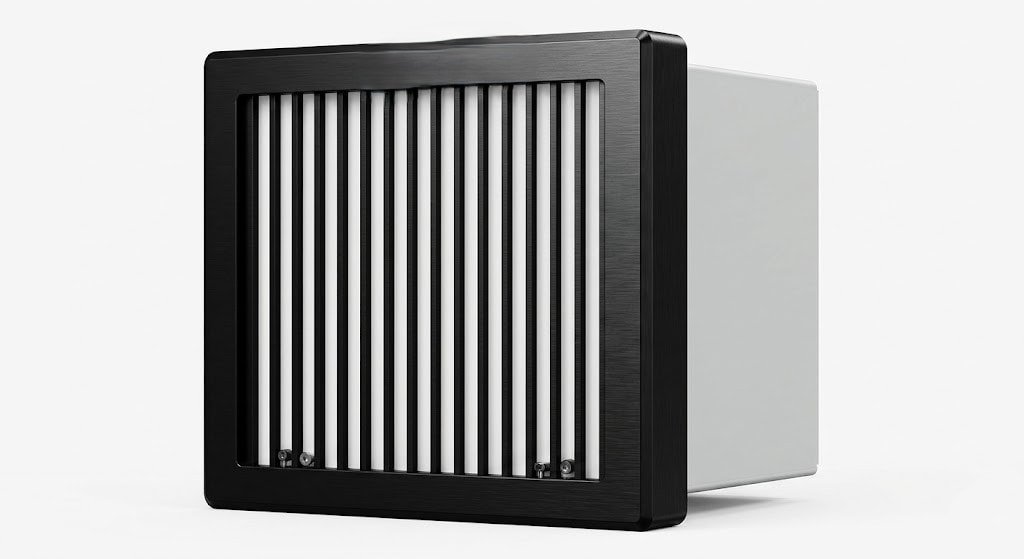

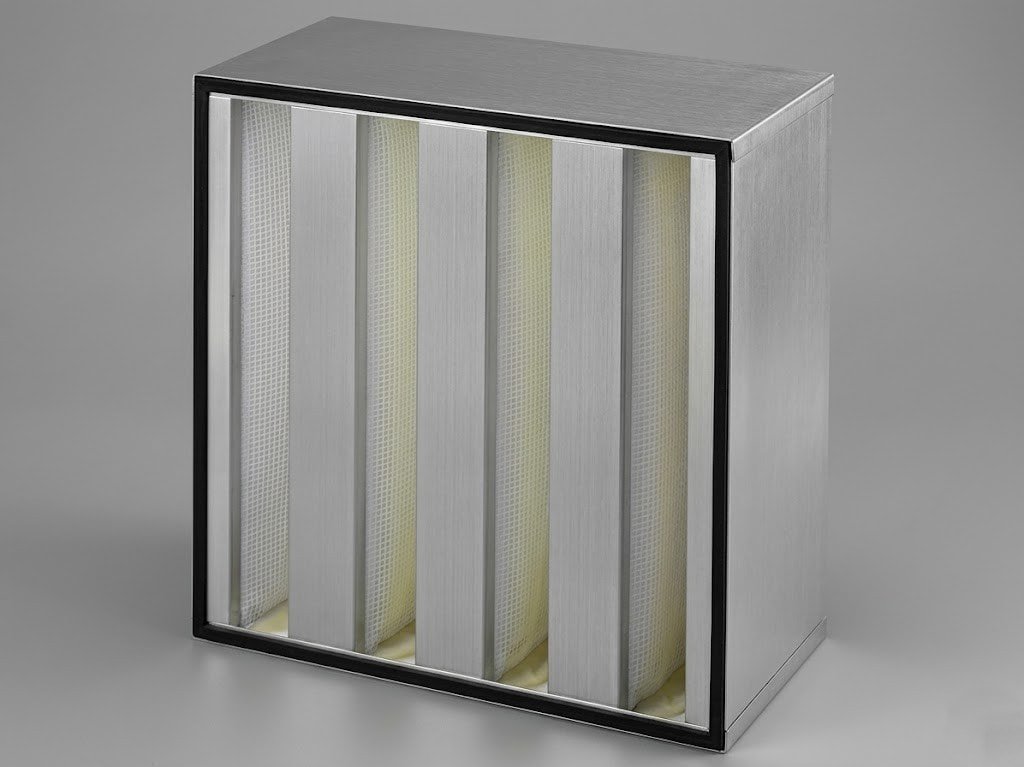

High-Capacity V-Bank Design
Optimized media pleat density and structural support perfectly balance high filtration efficiency with low initial pressure drop.
| Item | Specification |
|---|---|
| Efficiency Grade | H13 (≥99.95%), H14 (≥99.995%) |
| Frame Material | Plastic, ABS, Galvanized Steel, Aluminum, Stainless Steel |
| Filter Media | Moisture-resistant Microglass Fiber |
| Separator | Hot-melt Bead |
| Sealant | Polyurethane (PU) |
| Gasket Option | Upstream, Downstream, Double-sided (PU/EVA/EPDM) |
| Max Temp / Humidity | 70°C - 80°C / 100% RH |
V-Bank HEPA Filter Solutions for Different Purchasing Needs
Clear Filter Pro supplies standard, customized, mini-pleat, project-based, and wholesale V-Bank HEPA Filters for HVAC systems, AHUs, cleanrooms, hospitals, pharmaceutical facilities, electronics manufacturing, and industrial ventilation projects.

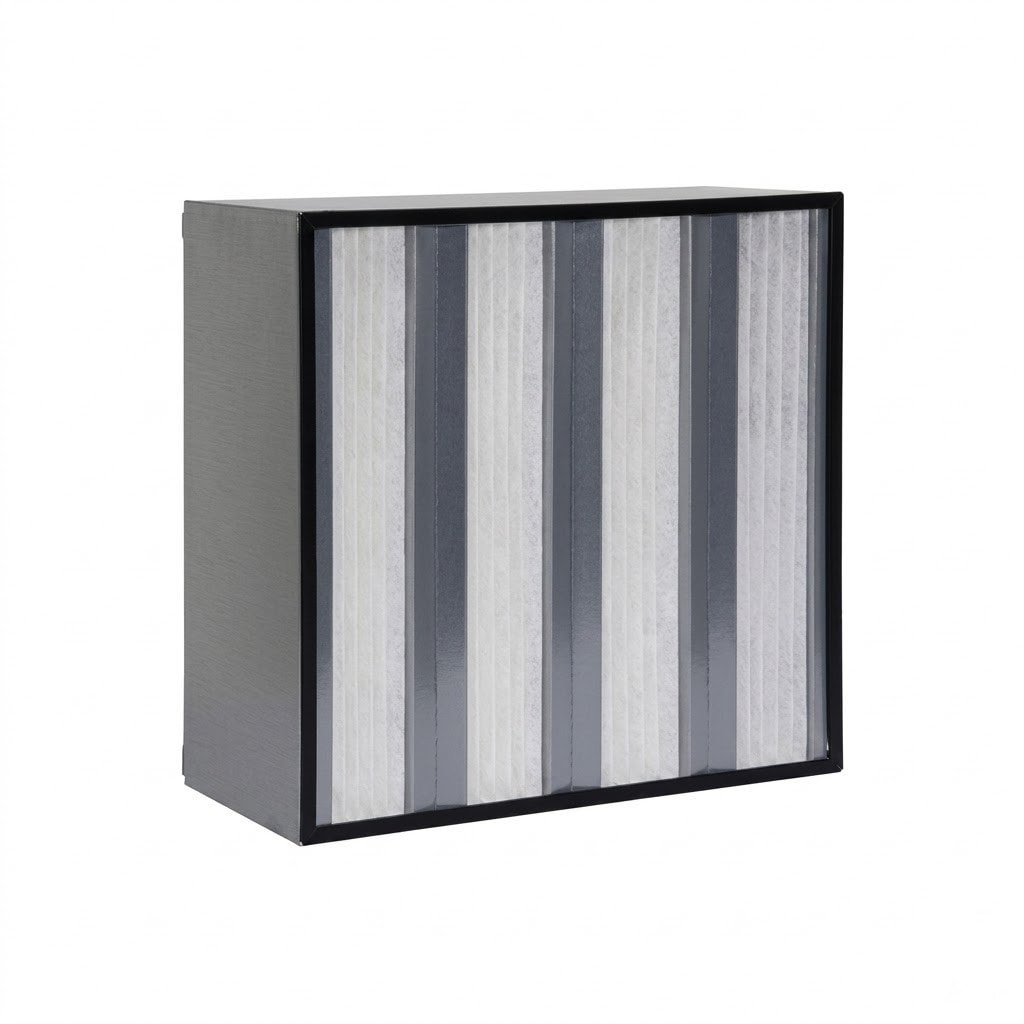

V-Bank HEPA Filter
A high-capacity HEPA filter with V-shaped media packs designed for high airflow, lower pressure drop, and stable filtration performance.
AHUs, HVAC systems, hospitals, cleanrooms, and industrial ventilation.
- H13 / H14 efficiency options
- Large media area
- High airflow capacity
- Custom size available

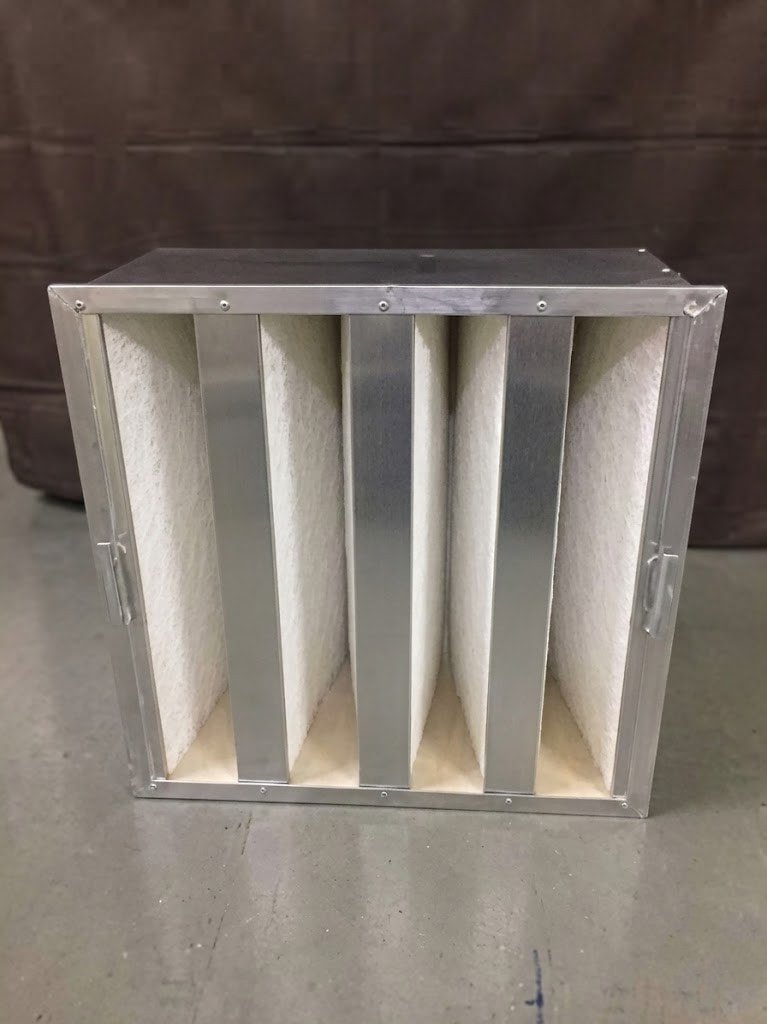

Custom V-Bank HEPA Filter
Customized V-Bank HEPA Filters manufactured according to your size, airflow, pressure drop, frame material, gasket position, and installation requirements.
Non-standard AHUs, OEM equipment, replacement projects, and special ventilation systems.
- Custom L × W × D dimensions
- Custom frame and gasket
- Custom airflow and resistance
- OEM label and packaging available

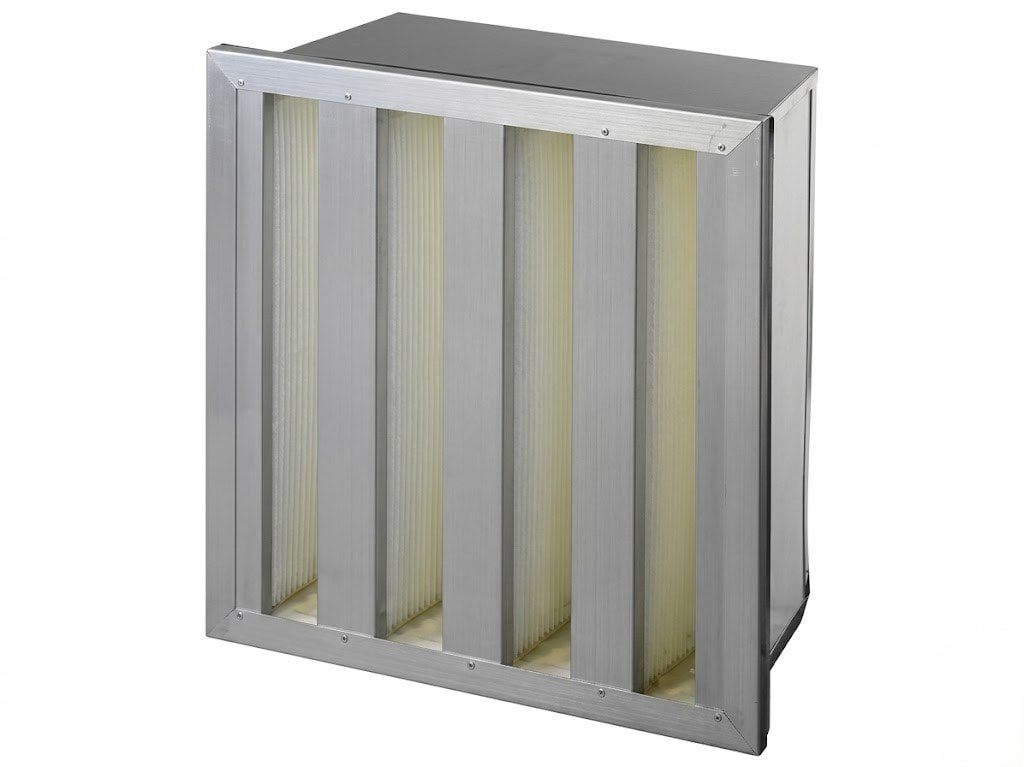

V-Bank Mini Pleat HEPA Filter
A mini-pleat V-Bank HEPA Filter designed to increase effective filtration area while maintaining compact structure and controlled resistance.
High-airflow HVAC systems, cleanroom air supply systems, pharmaceutical facilities, and electronics manufacturing.
- Mini-pleat media pack
- Lower pressure drop design
- High dust holding capacity
- Stable airflow performance

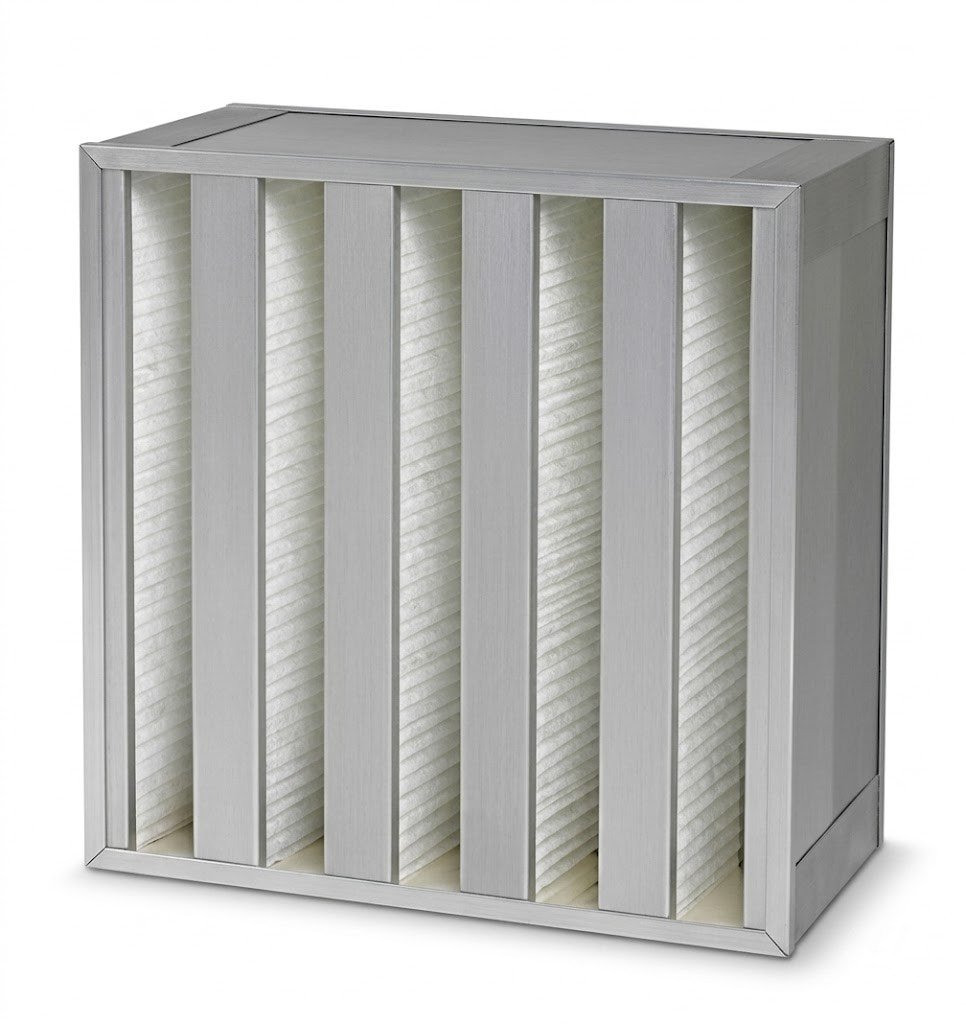

V-Bank HEPA Filter Manufacturer
Work directly with a factory manufacturer for project-based V-Bank HEPA Filter production, technical matching, testing support, and repeat-order specification control.
Cleanroom contractors, HVAC project buyers, OEM manufacturers, and facility maintenance teams.
- Factory-direct production
- Custom specification support
- Test reports available on request
- Repeat-order consistency

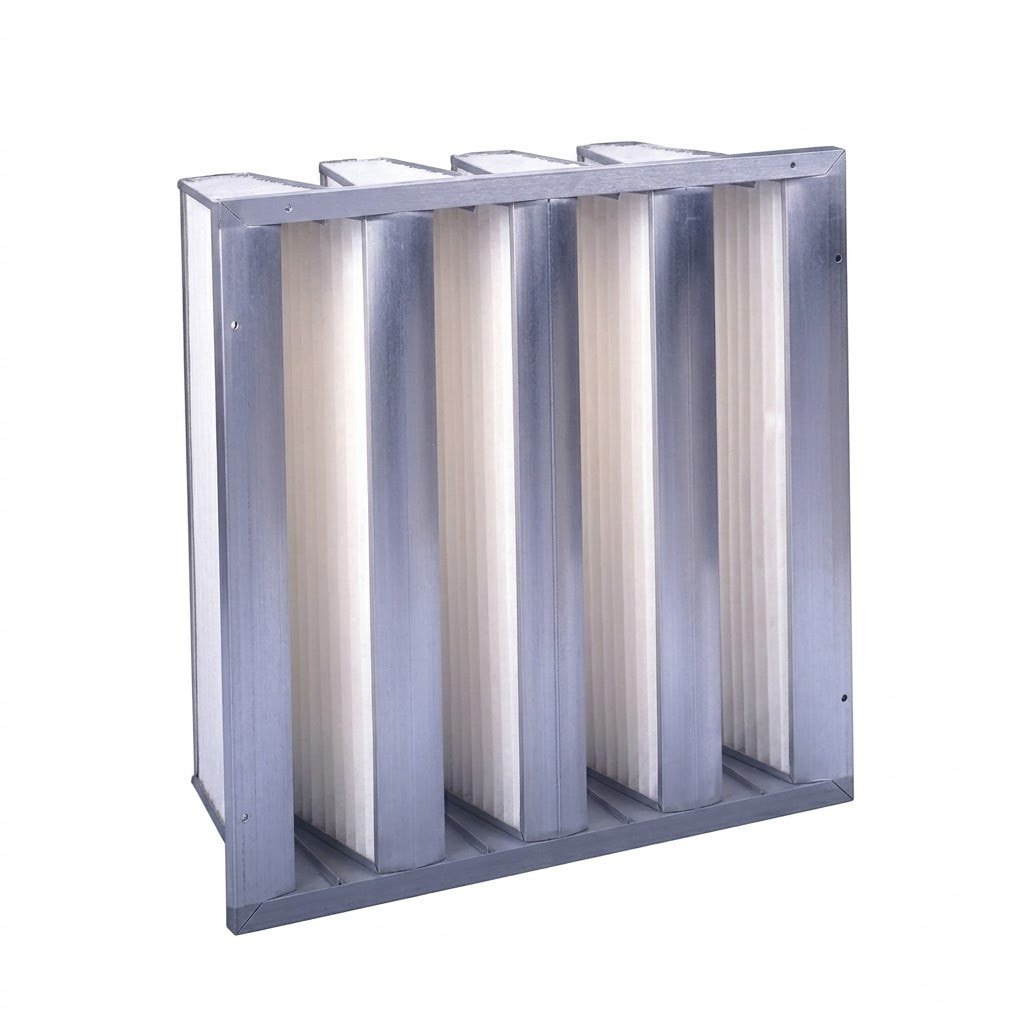

V-Bank HEPA Filter Supplier
A reliable V-Bank HEPA Filter supplier for standard replacement filters, project procurement, distributor supply, and international shipment.
Distributors, contractors, maintenance buyers, and industrial filter replacement programs.
- Flexible order support
- Export-ready packaging
- Technical document support
- Multiple frame options available

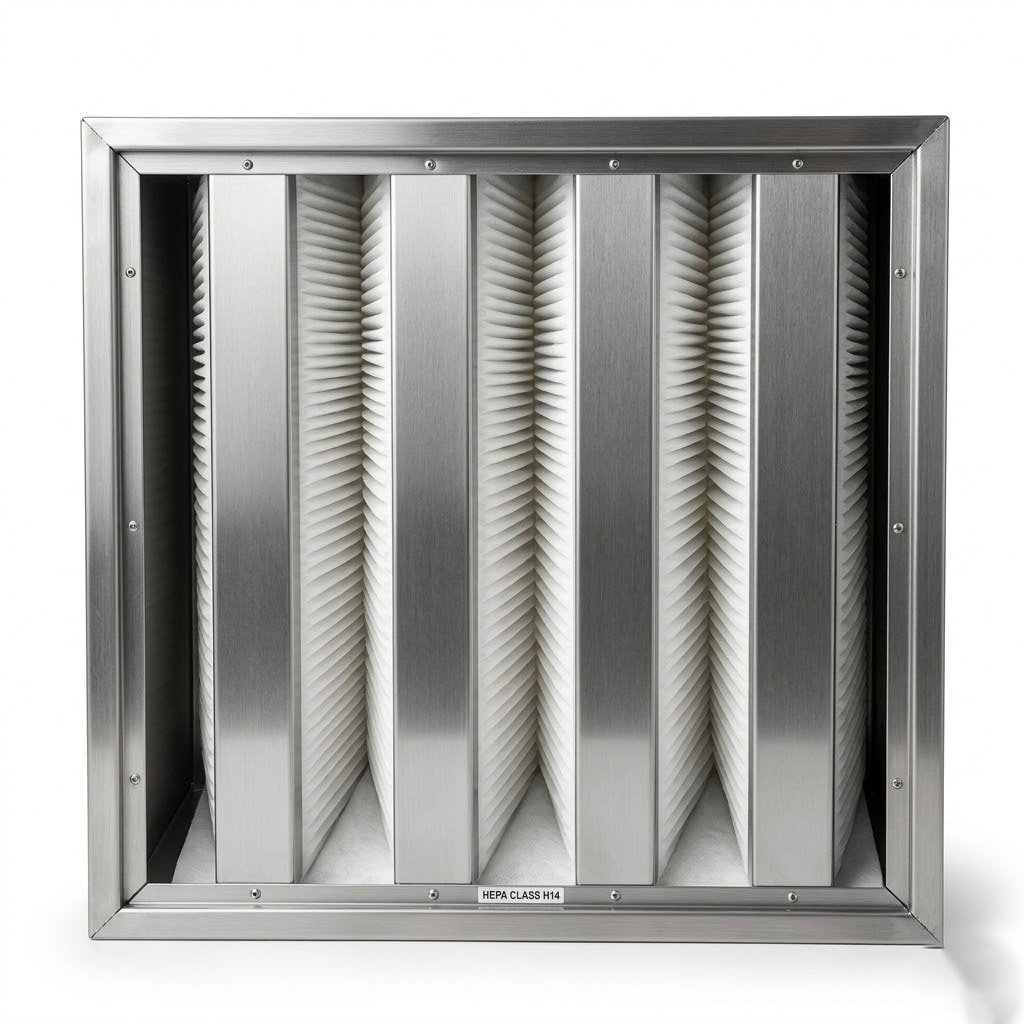

Wholesale V-Bank HEPA Filter
Wholesale V-Bank HEPA Filters for bulk purchasing, distributor inventory, OEM projects, and long-term replacement supply programs.
Filter distributors, HVAC service companies, project contractors, and bulk replacement buyers.
- Bulk order support
- Stable repeat supply
- Custom label available
- Project quotation available
Common V-Bank HEPA Filter Problems We Help You Solve
For high-airflow HVAC and cleanroom systems, the wrong HEPA filter can increase pressure drop, overload fans, shorten service life, delay replacement, or create inconsistent airflow performance. Our V-Bank HEPA Filters are designed to help buyers solve real procurement and engineering problems before they affect system operation.
1. High Pressure Drop in High-Airflow Systems
Pain Point
Standard HEPA filters may create excessive resistance when used in high-air-volume systems.
Business Impact
High pressure drop can increase fan load, raise energy consumption, reduce airflow stability, and increase long-term operating cost.
Our Solution
Our V-Bank HEPA Filters use a V-shaped media pack to increase effective filtration area inside a compact frame. This helps support high airflow while keeping resistance under control.
2. Short Filter Service Life
Pain Point
Filters with limited media area may load with dust faster, especially in systems with high airflow or long operating hours.
Business Impact
Frequent replacement increases maintenance cost, downtime, labor, and filter inventory pressure.
Our Solution
The V-bank structure provides larger media area and higher dust holding capacity compared with many flat-panel structures. This helps extend replacement intervals.
3. Wrong Size or Frame Structure
Pain Point
Different AHUs, HVAC systems, and cleanroom housings may require different sizes, frame materials, gasket positions, and airflow ratings.
Business Impact
Incorrect specifications can cause installation delays, air leakage, airflow mismatch, and urgent replacement orders.
Our Solution
We support custom L×W×D dimensions, plastic/metal frames, gasket positions, and airflow ratings based on your drawing or sample.
4. Unclear Efficiency and Test Docs
Pain Point
Some projects require clear efficiency data, test reports, product labels, or documentation for engineering review and project acceptance.
Business Impact
Missing documents can delay approval, cleanroom validation, maintenance records, or supplier qualification.
Our Solution
Datasheets, efficiency data, DOP / PAO leak test reports, product labels, and certificate documents are available on request.
5. Unstable Replacement Supply
Pain Point
Facility maintenance teams and distributors often need repeat orders with consistent size, airflow, pressure drop, frame material, and packaging.
Business Impact
Inconsistent replacement filters may create installation problems, airflow variation, and additional procurement risk.
Our Solution
Factory-direct production supports repeat-order specification control, OEM labels, bulk supply, and long-term replacement programs.
Not Sure Which Structure to Choose?
We help compare airflow, installation space, efficiency grade, system resistance, and application environment before recommending the right filter structure.
Advantages Built Around High-Airflow Filtration
Engineered for buyers who demand high-efficiency filtration, superior airflow capacity, and stable factory-direct supply. Every structural advantage is designed to deliver measurable operational value.
High Airflow & Lower Pressure Drop
- Capability: Compact V-bank structure maximizes effective filtration area within standard dimensions.
- Support: Multiple mini-pleat media packs allow more air passage, significantly reducing resistance.
- Benefit: Maintain required airflow, reduce HVAC fan load, and lower long-term energy consumption.
Stable HEPA Performance
- Capability: Supplied in H13 or H14 efficiency grades depending on strict project requirements.
- Support: Media, structure, sealant, and frame strictly selected according to target cleanliness levels.
- Benefit: Match the exact efficiency to your application without costly over-specifying.
Demanding Industrial Applications
- Capability: Engineered for high-airflow systems demanding extreme efficiency and structural durability.
- Support: Matched to AHUs, HVAC, cleanrooms, hospitals, and semiconductor manufacturing.
- Benefit: Receive a filter configuration matched to your real system, not a generic catalog product.
Custom Frame & Installation
- Capability: Plastic, ABS, galvanized steel, aluminum, stainless steel, and custom dimensions.
- Support: Manufactured based on CAD drawings, old labels, sample photos, or AHU specs.
- Benefit: Eliminate installation mismatches and improve replacement accuracy on-site.
Traceable Quality & Testing
- Capability: Comprehensive datasheets, DOP/PAO leak test reports, and compliance labels.
- Support: Testing protocols and documentation are confirmed before mass production.
- Benefit: Streamline supplier evaluation, project acceptance, and maintenance audits.
Factory-Direct Supply
- Capability: Rapid sample confirmation, OEM labeling, bulk orders, and long-term supply agreements.
- Support: Maintain consistent specifications, packaging, and communication across all orders.
- Benefit: Eliminate middleman markups and manage replacement programs efficiently.
Ready to Optimize Your Filtration System?
Connect with our engineering team to discuss custom dimensions, media specifications, and factory-direct pricing for your next project.
Trusted V-Bank HEPA Filter Manufacturer
Source-level vertical integration for high-airflow filtration projects. We support cleanroom contractors and OEM manufacturers with in-house production, strict compliance testing, and zero-compromise quality.
End-to-end controlled production from media selection to final frame assembly, eliminating middleman markups.
Unit-by-unit DOP/PAO leak testing. Comprehensive test reports and efficiency data available for strict compliance.
Rapid prototyping for custom dimensions, specific frame materials (Galvanized, ABS, Aluminum), and specific airflows.
Supplying 20+ countries with detailed specifications, secure pallet packing info, and seamless logistics.
Standardized Production Protocol
Precision hot-melt spacing for optimal media density and airflow.
Rigid structural forming using premium galvanized or ABS materials.
Rigorous DOP/PAO leak verification for every single filter unit.
Reinforced palletization designed for safe global transit.
Need technical assistance?
Connect directly with our engineering team for custom specifications, compliance documentation, and volume orders.

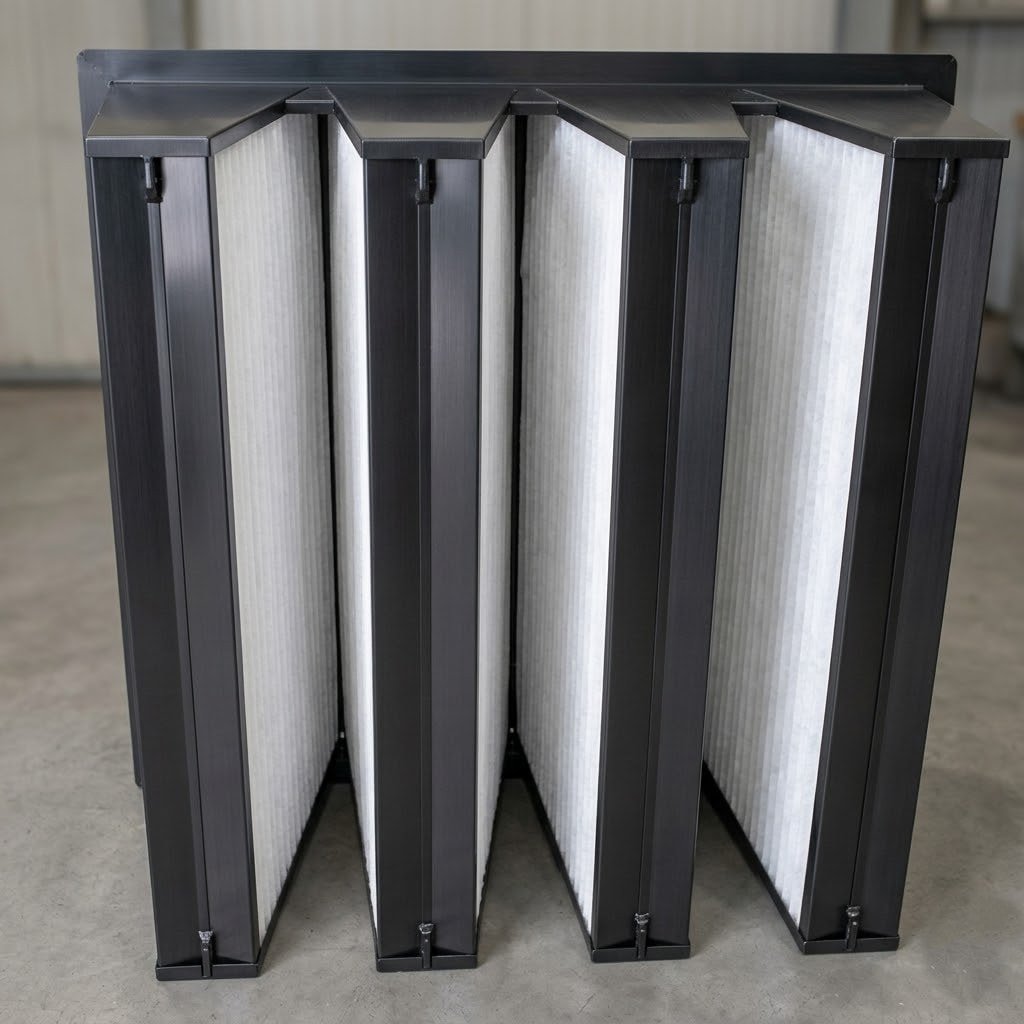

What Is a V-Bank HEPA Filter?
A V-Bank HEPA Filter is a high-capacity HEPA air filter designed with multiple V-shaped mini-pleat media packs inside a rigid frame. This structure increases the effective filtration area while keeping the filter compact, making it suitable for high-airflow HVAC systems, AHUs, cleanrooms, hospitals, pharmaceutical facilities, electronics manufacturing, and industrial ventilation systems.
Performance Advantages
Compared with standard panel HEPA filters, a V-Bank HEPA Filter is usually selected when the air handling system requires higher airflow, lower pressure drop, longer service life, and better dust holding capacity. It can be supplied in H13 or H14 efficiency grades depending on project requirements.
Applications & Selection Criteria
V-Bank HEPA Filters are commonly used as final-stage filters in ventilation and air supply systems where both particle control and system energy efficiency are important. The filter size, frame material, gasket position, airflow, resistance, and documentation package should be selected according to the actual system design.
How to Choose the Right V-Bank HEPA Filter
Before placing an order, confirm the efficiency grade, airflow, pressure drop, filter size, frame material, gasket position, application environment, testing requirement, and order type. These factors help determine whether you need a standard V-Bank HEPA Filter or a customized solution.
| Selection Factor | What You Need to Confirm | Recommended Choice / What We Support |
|---|---|---|
| Efficiency Grade | Cleanroom class or target particle size limit. | H14 for ISO 5+ cleanrooms. H13 for general high-efficiency needs. |
| Rated Airflow | Required air volume (CFM or m³/h) per filter. | High Airflow V-Bank models supported for heavy-duty AHUs. |
| Pressure Drop Target | Initial resistance limit of your fan system. | Standard 250 Pa initial. Low-resistance configurations available. |
| Filter Size | Exact L×W×D dimensions of AHU holding frame. | Standard (e.g., 610×610×292mm) and custom sizes supported. |
| Frame Material | Installation environment, weight limits, and corrosion risk. | Plastic/ABS for standard HVAC. Galvanized/SS for harsh conditions. |
| Gasket Position | Airflow direction and housing sealing mechanism. | Upstream, downstream, or double-sided PU/EVA/EPDM gaskets. |
Need Help Selecting?
Send us your filter size, airflow, pressure drop target, efficiency grade, frame material, gasket requirement, quantity, and drawing or old filter photo. Our team will help confirm the suitable V-Bank HEPA Filter specification before quotation.
V-Bank HEPA Filter vs Other Options
Different HEPA filter structures are designed for different airflow volume, installation space, resistance limits, and application environments. Use this comparison to decide whether a V-Bank HEPA Filter is the right choice for your system.
V-Bank HEPA Filter vs Panel vs Box-Type
| Feature | V-Bank HEPA Filter | Panel HEPA Filter | Box-Type HEPA Filter |
|---|---|---|---|
| Airflow Capacity | High | Low to Medium | Medium to High |
| Pressure Drop | Lower | Higher | Medium |
| Filtration Area | Very Large | Small | Medium |
| Installation Depth | Deep (e.g., 292mm) | Shallow (e.g., 50-150mm) | Deep (e.g., 292mm) |
| Best Application | AHUs, High Airflow Systems | Cleanroom Ceilings, FFU | Standard HVAC |
Plastic Frame vs Metal Frame V-Bank HEPA Filter
| Feature | Plastic / ABS Frame | Metal Frame (Galv / Alu / SS) |
|---|---|---|
| Weight | Lightweight, easy to install | Heavier, robust |
| Incinerable | Yes (fully disposable) | No |
| Structural Strength | Standard HVAC applications | High (suitable for turbulent flow/harsh conditions) |
Not sure which structure fits your AHU?
Frequently Asked Questions About V-Bank HEPA Filters
What is a V-Bank HEPA Filter used for?
What is the difference between a V-Bank HEPA Filter and a standard panel HEPA filter?
What efficiency grades are available for V-Bank HEPA Filters?
Can V-Bank HEPA Filters be customized?
How do I choose between plastic frame and metal frame V-Bank HEPA Filters?
Can you provide DOP / PAO test reports?
What information is needed for an accurate quotation?
Do you support OEM labels and bulk orders?
Need a Custom V-Bank HEPA Filter for Your Air Handling System?
Send us your filter size, efficiency grade, airflow, pressure drop target, frame material, gasket requirement, and quantity. Our team will help confirm the right specification and provide a project quotation.
What You Can Get After Submitting
-
Free Specification Matching
Send your drawing, old filter label, or sample photo. We help confirm size, frame, airflow, and suitable structure.
-
Project Quotation Support
Get a quotation based on your actual filter size, efficiency grade, airflow, quantity, and testing requirement.
-
Technical Datasheet Available
Request product datasheets, efficiency information, and pressure drop reference for internal review.
-
Test Report Support
DOP / PAO leak test reports, efficiency data, and related quality documents are available.
-
Sample and Bulk Order Support
Sample confirmation, OEM labels, distributor stock, and long-term replacement programs supported.
