Hydraulic Pressure Line Filter Manufacturer
Factory-direct Hydraulic Pressure Line Filters for high-pressure hydraulic circuits, industrial machinery, mobile equipment, hydraulic power units, construction machinery, agricultural machinery, and OEM hydraulic systems.
- Designed for high-pressure hydraulic line filtration
- Custom working pressure, flow rate, micron rating, and port size
- Protects pumps, valves, cylinders, actuators, and downstream components
- Bypass valve and clogging indicator options available
- Replacement filter elements for OEM and maintenance projects
- Bulk supply, custom labels, and project quotation supported
Pressure Line Filtration
Pump Outlet → Pressure Line Filter → Valve / Actuator
Hydraulic Pressure Line Filter Specifications
Our Hydraulic Pressure Line Filters are designed to remove fine particles from hydraulic oil in high-pressure circuits. Installed after the pump or before sensitive downstream components, they help protect valves, cylinders, actuators, servo systems, and hydraulic equipment from contamination-related wear and failure.
Technical Specifications
Hydraulic Pressure Line Filter Options for Industrial Applications
Clear Filter Pro supplies high-pressure inline hydraulic filters, industrial pressure line filters, replacement filter elements, and custom hydraulic pressure filters for OEM systems, industrial equipment, mobile machinery, and hydraulic maintenance projects.
Industrial In-Line Hydraulic Pressure Filter
An industrial in-line hydraulic pressure filter designed for pressure-side filtration in hydraulic systems, helping protect downstream components from particle contamination.
Industrial machinery, hydraulic power units, production equipment, and high-pressure hydraulic circuits.
- High-pressure inline installation
- Custom flow rate & pressure
- Multiple micron ratings

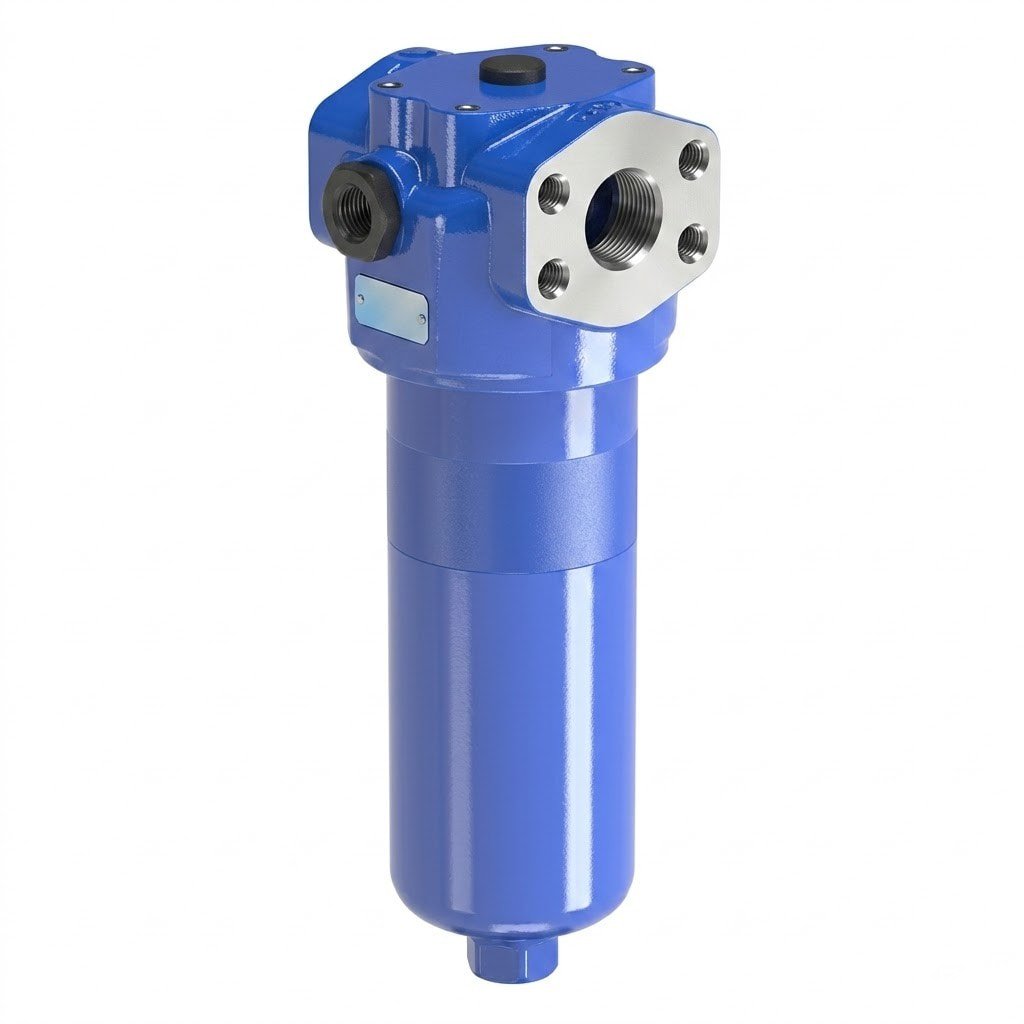

Hydraulic High Pressure Line Filter
A high-pressure line filter designed to remove fine particles from hydraulic oil before the oil reaches sensitive valves, cylinders, and actuators.
Servo systems, proportional valve circuits, construction equipment, mobile hydraulics.
- Fine particle filtration
- Protects downstream parts
- Bypass & indicator options

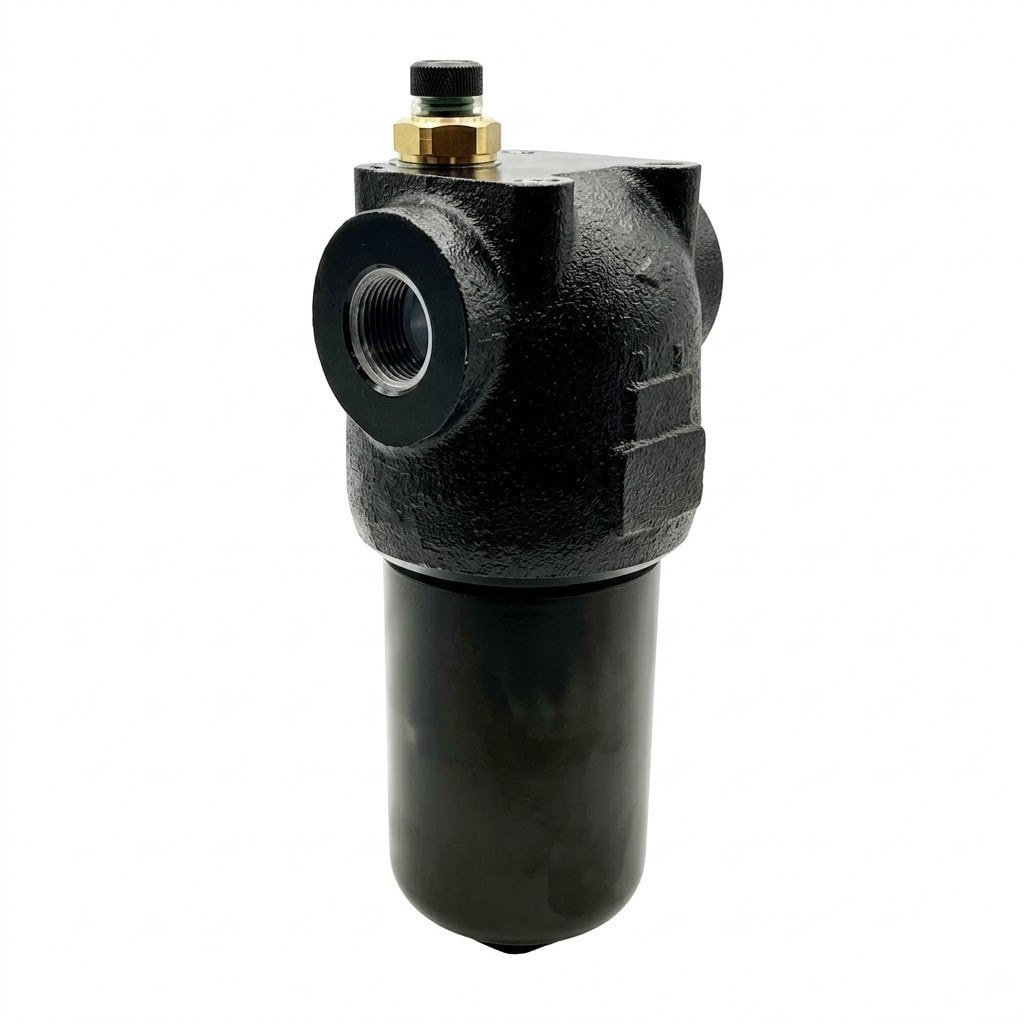

In Line High Pressure Hydraulic Filter
An inline high-pressure hydraulic filter installed directly in the pressure line to maintain oil cleanliness and reduce component wear.
Hydraulic power units, mining equipment, agricultural machinery, marine hydraulics.
- Inline pressure-side structure
- Custom port size
- Replacement element support

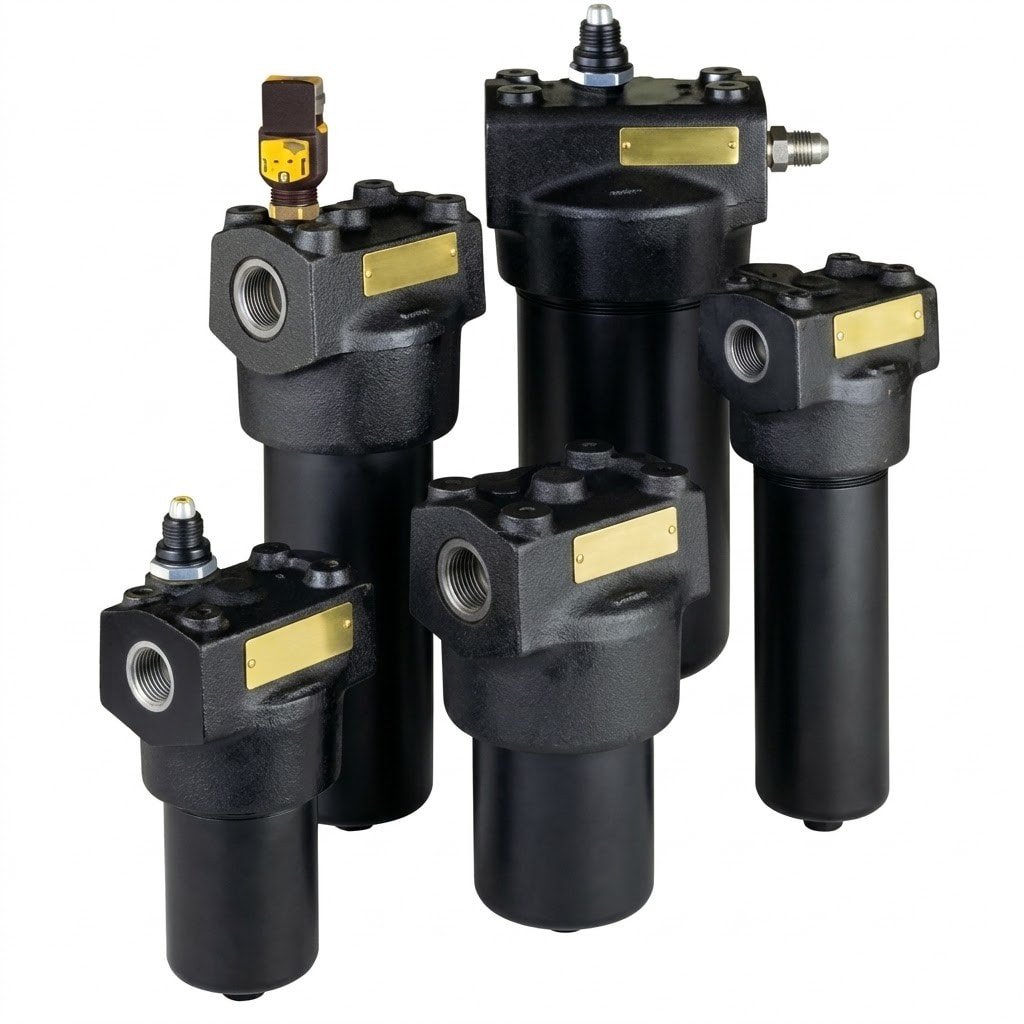

Custom Hydraulic Pressure Line Filter
Custom pressure line filters manufactured according to your working pressure, flow rate, micron rating, port size, and installation requirement.
OEM hydraulic systems, non-standard equipment, replacement projects, bulk procurement.
- Custom housing & element
- Custom thread or flange
- OEM label and packaging
Common Hydraulic Pressure Line Filter Problems We Help You Solve
A pressure line filter works in a more demanding hydraulic circuit than a return line filter. If the filter is undersized, incorrectly rated, or mismatched, it can create pressure drop issues, housing risk, component damage, or unplanned downtime.
| Pain Point | Business Impact | Our Solution |
|---|---|---|
| 1. Particles Damage Sensitive Downstream Components | Contamination can cause valve sticking, internal leakage, unstable motion control, component wear, and expensive equipment downtime. | Our filters remove fine particles before reaching sensitive components, supporting cleaner oil and reliable performance. |
| 2. Filter Housing Cannot Handle System Pressure | Wrong pressure selection may lead to housing deformation, leakage, filter failure, equipment damage, or safety hazards. | We match working pressure, burst safety requirements, housing material, and port type to your conditions. |
| 3. High Pressure Drop Affects System Efficiency | High pressure drop can reduce system efficiency, increase energy loss, affect actuator response, and shorten filter life. | We balance filter media, filtration area, micron rating, and flow rate to minimize pressure drop. |
| 4. Wrong Port Size or Connection Type | Incorrect connection can cause installation failure, oil leakage, rework, urgent replacement, and project delay. | We support custom port size, threaded/flange connections, and precise replacement model matching. |
| 5. Replacement Element Does Not Match Existing Housing | Incorrect elements cause poor sealing, bypass risk, collapse risk, leakage, or installation failure. | We match elements based on old filter model, dimensions, sample photo, seal material, and media. |
| 6. Price Is Hard to Confirm Without Technical Data | Generic pricing leads to inaccurate budgeting, repeated quotation revisions, and delayed procurement. | We provide specification-based quotations based on your pressure rating, flow rate, micron rating, and quantity. |
Advantages Built Around High-Pressure Hydraulic Protection
Developed for buyers who need high-pressure resistance, stable oil cleanliness, proper flow capacity, reliable replacement matching, and custom supply support.
High-Pressure Housing Design
Capability: Designed for high-pressure circuits, matched to working pressure.
Support: Material, wall thickness, port design selected per pressure rating.
Benefit: Reduces risk of leakage and housing mismatch in demanding systems.
Fine Particle Filtration
Capability: Multiple micron ratings and media for pressure-side filtration.
Support: Glass fiber, mesh, synthetic options based on cleanliness targets.
Benefit: Protects servo valves and actuators from wear and failure.
Balanced Flow & Pressure Drop
Capability: Structure matched to system flow and pressure drop limits.
Support: Media area and pleat structure optimized for oil flow resistance.
Benefit: Maintains system response and reduces energy loss.
Bypass & Indicator Options
Capability: Bypass valve and clogging indicators available on request.
Support: Helps manage differential pressure and maintenance planning.
Benefit: Reduces risk of filter saturation and unexpected downtime.
Custom & Replacement Support
Capability: Custom housings, elements, ports, seals, threads, flanges.
Support: Production based on old labels, samples, drawings, or OEM specs.
Benefit: Solves replacement matching problems for non-standard systems.
Factory-Direct Supply
Capability: OEM labels, distributor supply, project orders, bulk supply.
Support: Consistent specifications, packaging, and repeat-order records.
Benefit: Reduces communication cost and stabilizes filter replacement programs.
Trusted Hydraulic Pressure Line Filter Manufacturer
Clear Filter supports hydraulic filtration projects with custom filter manufacturing, replacement element matching, technical documentation, and export-ready service. We help OEM buyers, distributors, and industrial users source filters that match real hydraulic system requirements.
30k㎡
Facility
10+
Prod. Lines
20+
Countries
Custom Manufacturing
Custom size, housing, media, seals, port type, indicator, and packaging tailored to your specs.
Replacement Matching
Precise matching based on old models, labels, dimensions, end caps, and sample photos.
OEM & Bulk Supply
Sample confirmation, OEM labels, project orders, and reliable global distributor supply.
Factory Showcase
Virtual tour of our manufacturing facilities
What Is a Hydraulic Pressure Line Filter?
A Hydraulic Pressure Line Filter is a hydraulic oil filter installed in the pressure line of a hydraulic system, usually after the pump and before sensitive downstream components such as valves, cylinders, actuators, servo valves, or proportional valves. Its main function is to remove fine particles from pressurized hydraulic oil and help protect critical components from contamination-related wear or failure.
Compared with return line filters, pressure line filters must withstand higher system pressure and are selected based on working pressure, flow rate, micron rating, pressure drop, housing strength, port size, bypass valve setting, and filter element structure.
They are widely used in industrial machinery, hydraulic power units, construction equipment, mobile hydraulics, and lubrication systems. For OEM or replacement projects, the housing pressure rating, connection type, element size, and clogging indicator requirement should be confirmed before ordering.
How to Choose the Right Hydraulic Pressure Line Filter
Before placing an order, confirm these key factors. They determine whether you need a standard pressure line filter, replacement element, or custom hydraulic filter solution.
| Selection Factor | What You Need to Confirm | What We Support |
|---|---|---|
| 1. Working Pressure | Maximum system pressure, pressure spikes, and safety margin. | Up to 420 Bar (6000 PSI) custom housings. |
| 2. Flow Rate | Required flow capacity to avoid excessive pressure drop. | 30 L/min to 1320 L/min sizes. |
| 3. Micron Rating | Cleanliness target based on downstream component sensitivity. | 3μm, 5μm, 10μm, 20μm absolute. |
| 4. Port Size & Type | Thread type (BSP/NPT) or Flange standard (SAE Code 61/62). | Custom threaded or flanged connections. |
| 5. Bypass Valve | Whether unfiltered bypass flow is acceptable during cold start/clogging. | Optional bypass (e.g., 6 bar setting). |
| 6. Clogging Indicator | Visual or electrical monitoring for maintenance planning. | Visual, electrical, or combined indicators. |
Need Help Selecting?
Send us your working pressure, flow rate, micron rating, port size, and old filter photo. Our team will help confirm the suitable specification.
Hydraulic Pressure Line Filter vs Other Types
Choosing the correct filter type helps protect components, maintain oil cleanliness, and avoid pressure loss or installation mismatch.
By Circuit Position
| Type | Installation Location | Main Purpose |
|---|---|---|
| Pressure Line Filter | After pump, high-pressure line | Protect sensitive downstream components |
| Return Line Filter | Before oil returns to tank | Maintain overall system oil cleanliness |
| Suction Filter | Inside tank, pump inlet | Protect pump from large debris |
Housing vs Replacement Element
| Purchase Type | When to Choose | What is Included |
|---|---|---|

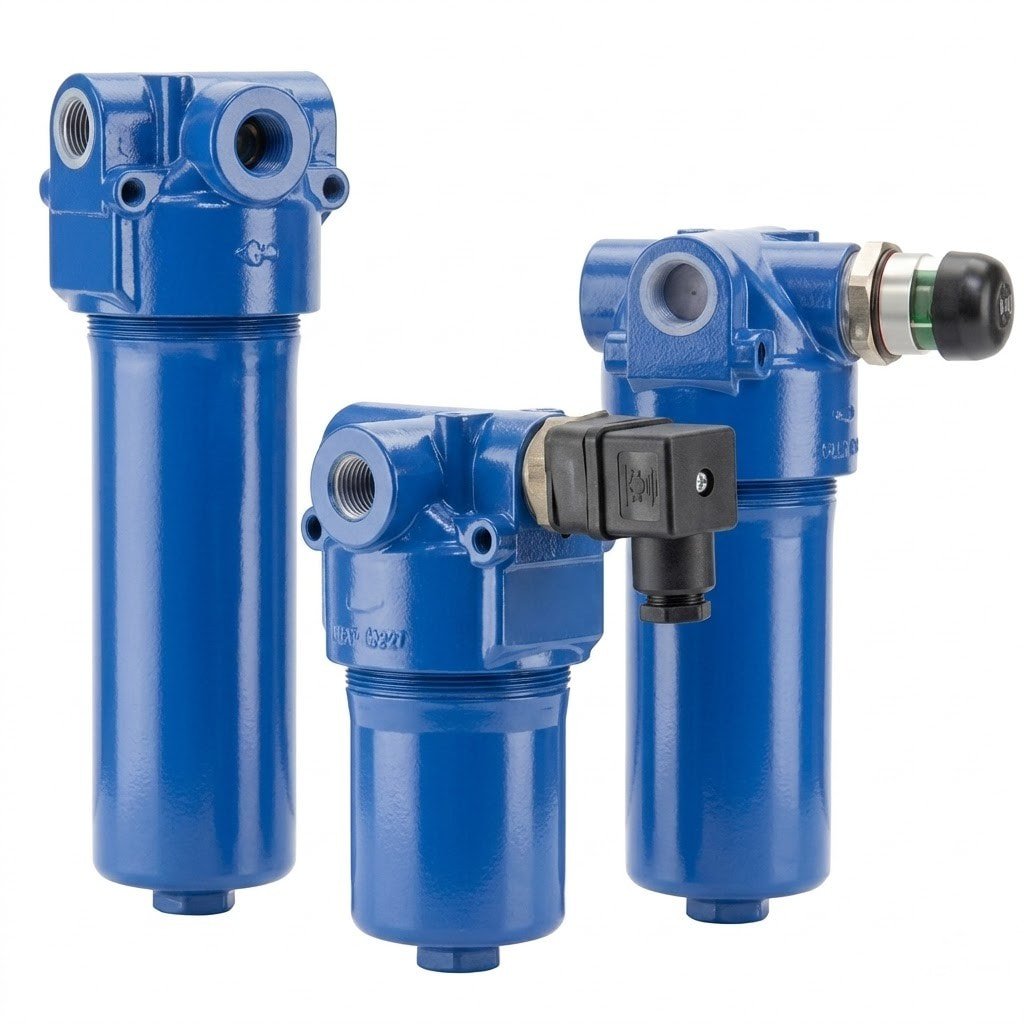

| Complete Filter Assembly | New OEM systems, equipment upgrades, damaged housings | Housing, element, seals, bypass, indicator |
| Replacement Element Only | Routine maintenance, existing housing is in good condition | Internal filter element and associated O-rings |
Not sure which hydraulic filter type you need? Send your hydraulic system position, working pressure, flow rate, model number, and old filter photo for confirmation.
Frequently Asked Questions About Hydraulic Pressure Line Filters
What is a Hydraulic Pressure Line Filter used for?
What is the difference between a pressure line filter and a return line filter?
How do I choose the working pressure?
How do I choose the micron rating?
Can you customize hydraulic pressure line filters?
Do pressure line filters need a bypass valve?
What is a clogging indicator and do I need one?
Can you supply replacement filter elements for existing housings?
Need a Custom Hydraulic Pressure Line Filter?
Send us your filter model, working pressure, flow rate, micron rating, port size, and quantity. Our team will help confirm the suitable filter or replacement element for your system.
What You Can Get After Submitting
Free Specification Matching
Send your old label or photo. We confirm pressure rating, size, media, seals, and compatibility.
Project Quotation Support
Get a quote based on working pressure, flow rate, micron rating, housing size, and quantity.
Replacement Element Matching
Match elements by old model numbers, dimensions, end caps, support tube, and collapse pressure.
OEM and Bulk Order Support
Sample confirmation, OEM labels, custom packaging, and long-term replacement programs.
