Reliable Hydraulic Oil Filters
for High-Pressure Systems
Equipment downtime isn't just an inconvenience; it's a direct hit to your operating budget. We build our hydraulic filters to keep your oil clean and your machines running without unexpected pressure drops.
- High Collapse Strength: Built with robust internal cores to withstand severe pressure surges in demanding hydraulic circuits without media failure.
- Micro-Glass Media: Captures fine wear particles efficiently to extend the operational life of your expensive pumps and servo valves.
- Direct OEM Replacement: Standardized dimensions designed to drop perfectly into your existing housings, saving you the heavy brand markup.
Solving Common Flow Issues with
Hydraulic Oil Filters
Standard filters often crush or bypass when heavy viscosity oils meet cold starts or pressure spikes. We design our hydraulic media to handle these exact harsh realities on the floor.
Source-Level Manufacturing
Eliminating middleman markups for Factory Direct Economics. Vertically integrated production ensures strict quality control.
Technical Advantages
Preventing Premature Blinding
We use multi-layered synthetic media to distribute the dirt load evenly, preventing the filter surface from clogging too quickly.
Stabilizing Pressure Drops
Rigid inner cores and outer support meshes keep the pleats stable, preventing media collapse even under high differential pressures.
Eliminating Media Migration
Thermal bonding and epoxy potting ensure no filter fibers break loose to contaminate your critical downstream valves.
Why Contamination Control Matters for Hydraulic Oil Filters
Over 70% of hydraulic system failures come down to fluid contamination. Upgrading to a proper dirt-holding filter is the most straightforward maintenance strategy you can deploy.
Prevent Premature Pump Wear
Capture abrasive particles before they score your proportional valves and high-pressure pumps.
Extend Fluid Life
By keeping the oil visibly cleaner, you reduce oxidation and additive depletion, extending the time between costly fluid changes.
Boost System Reliability
Consistent clean oil means fewer sticky valves, less unplanned downtime, and a more predictable production schedule.
Hydraulic Oil Filters
by Circuit Location
Engineered to safeguard critical components across the entire hydraulic circuit. Our elements optimize dirt-holding capacity and withstand high collapse pressures, ensuring reliable system protection and extended fluid life.

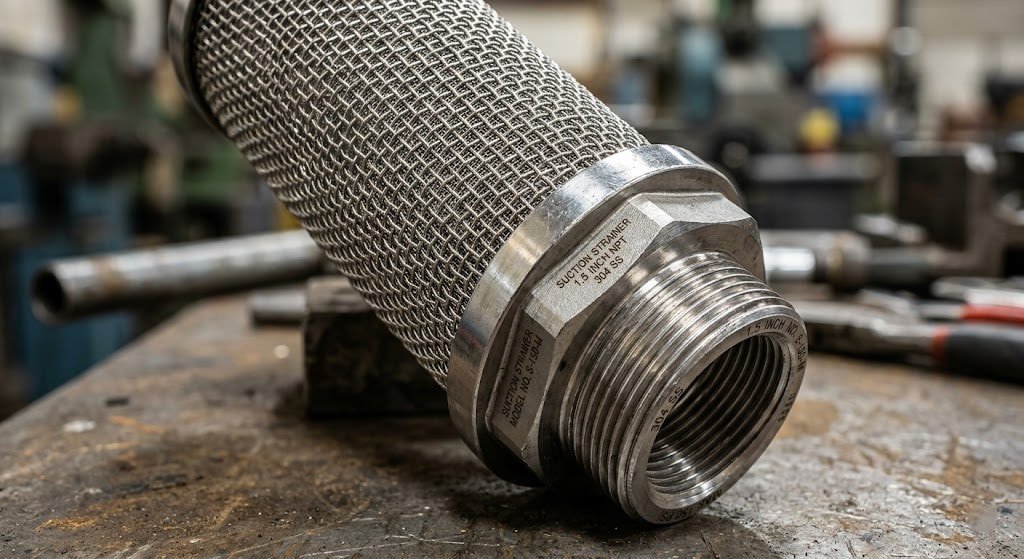

Pump Protection Suction Strainers
Installed directly in the reservoir to protect hydraulic pumps from catastrophic failure caused by large debris. Constructed with robust stainless steel wire mesh for low pressure drop and reliable flow during cold starts.

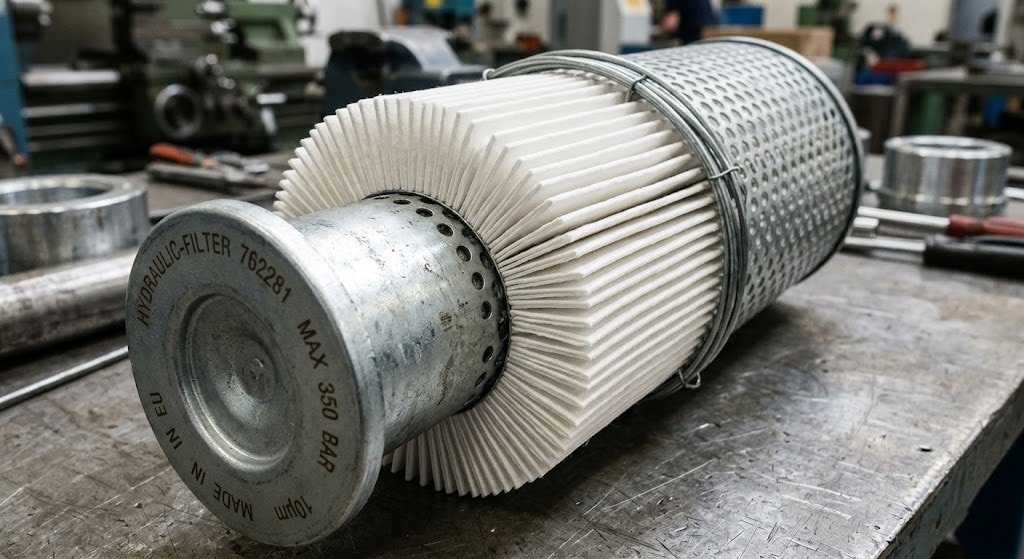

High-Pressure Line Filter Elements
Positioned downstream of the pump to protect sensitive components like servo and proportional valves. Features high-collapse-strength microglass media built to withstand severe pressure spikes and flow surges.

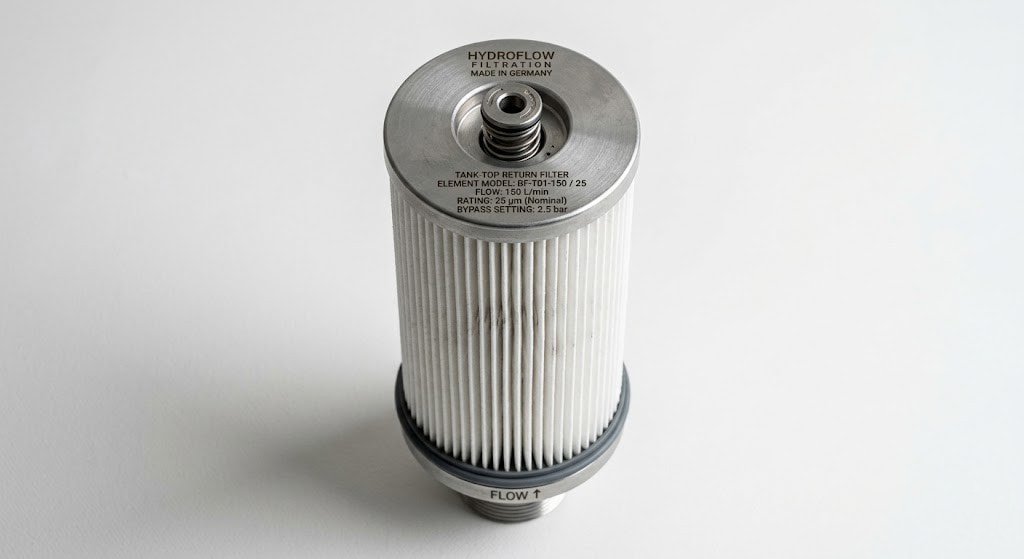

Tank-Top Return Line Filters
Captures wear metal and system-generated particulate before the fluid returns to the reservoir. Engineered with multi-layered pleated synthetic media to maintain overall fluid cleanliness and extend system life.

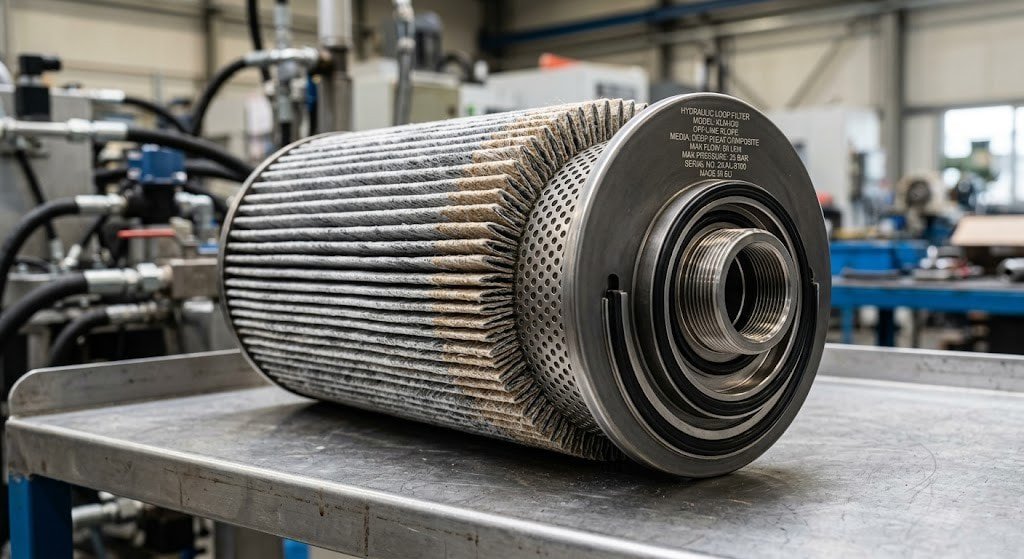

Off-Line & Kidney Loop Cartridges
Designed for continuous fluid conditioning independent of the main circuit. Utilizes deep-pleated cellulose or microglass media for ultra-fine particle removal and water absorption, achieving tight ISO cleanliness codes.
Quality Testing & OEM Replacement
for Hydraulic Oil Filters
You can't afford a bypassed filter in a critical hydraulic circuit. We batch-test our cartridges to ensure they meet the exact structural and flow demands of your facility.
100% Integrity Tested
Every critical filter passes rigorous bubble point and flow tests before it leaves the plant to guarantee consistent micron retention.
Agile Manufacturing
Need a specific micron rating or custom length? We handle custom production runs with practical, reliable turnaround times.
Global Replacement Compatibility
Engineered to be an exact drop-in fit for major OEM brands like Pall, Hydac, and Parker, offering reliable performance without the premium price tag.
The ClearFilter Advantage
We don't just supply filters; we engineer reliability. Our source-level vertical integration ensures you receive uncompromising quality without the middleman markup.
Worry-Free Compliance
Strict adherence to international industrial standards with zero-compromise testing protocols.
Agile & Flexible
Zero MOQ flexibility for non-standard requirements and rapid prototyping for custom dimensions.
Fast Global Shipping
Streamlined logistics network ensuring your replacement elements arrive exactly when needed.
Long-Lasting Durability
Data-driven structural support extends dust-holding capacity and overall service life.
Total Quality Assurance
Unit-by-unit testing rather than random sampling guarantees performance consistency. We execute rigorous DOP/PAO scan leak testing aligning with ISO 16890 and EN 1822.
Sizing and Connections for Hydraulic Oil Filters
Integration should be simple. Whether you need a standard open end or a specific O-ring seal, review our configurations to match your current filter housing perfectly.
Standard & Custom Lengths
Available in standard dimensions to fit industrial housings without the need to stack multiple short filters.

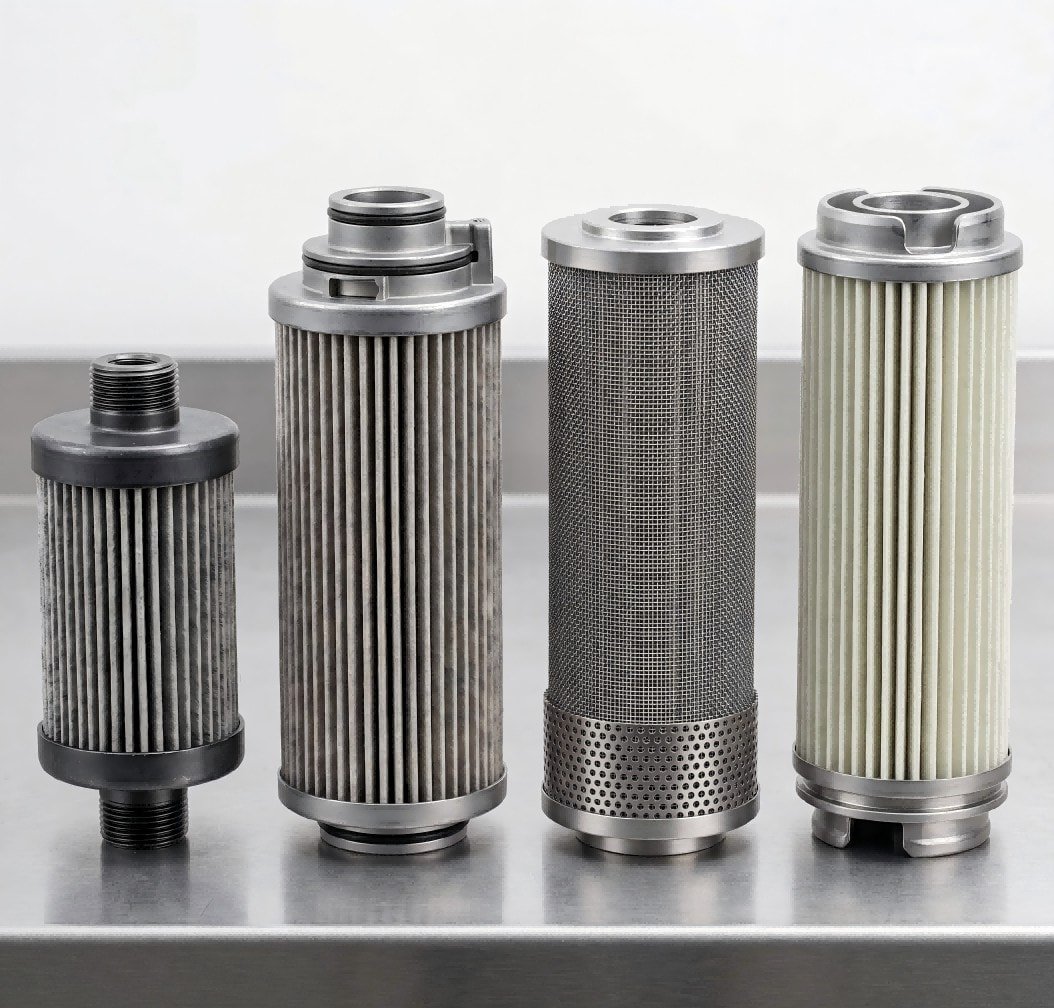

Multiple End-Cap Options
Choose from standard DOE, SOE with specific O-rings, and threaded bases to secure a leak-free seal in high-vibration environments.
Broad Seal Material Selection
Customize your O-rings with Buna-N, Viton, or EPDM to match your specific hydraulic fluid chemistry and operating temperatures.
Meeting
ISO 4406
Cleanliness Codes
with Hydraulic Oil Filters
Protecting your servo valves requires more than just guessing. We help you select the exact micron rating to achieve your target fluid cleanliness and prevent system failure.
Achieving ISO 16/14/11
Our micro-glass media provides the absolute retention efficiency needed to consistently hit strict ISO cleanliness targets.
Managing Pressure Drop
Optimized pleat geometry ensures you get the flow you need without pushing the filter into bypass mode prematurely.
Preventing Premature Clogging
We analyze your fluid viscosity and operating conditions to recommend the right media, significantly extending the filter's service life.
100% Factory Direct
Zero Middleman Markup

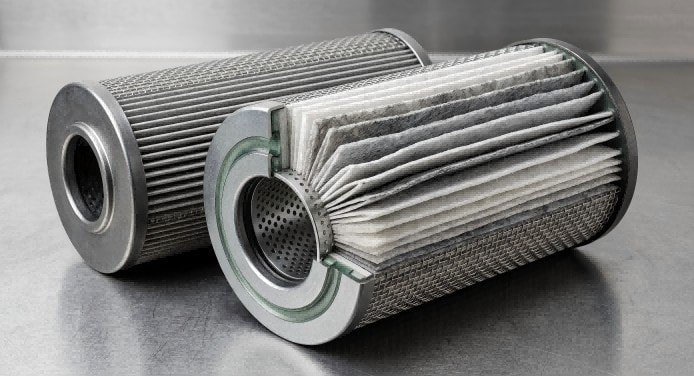

The Structural Engineering Behind Our Hydraulic Oil Filters
A reliable filter relies on more than just the pleated paper. Every component, from the inner core to the epoxy potting, is mechanically designed to survive high-pressure hydraulic flows.
Advanced Filter Media
Multi-layered micro-glass structure maximizes dirt-holding capacity without strangling fluid flow.
Heavy-Duty Structural Support
Thick metal inner cores and outer meshes prevent the media from collapsing under high differential pressure or flow surges.
Precision Sealing Technology
Industrial-grade polyurethane or epoxy potting eliminates fluid bypass, ensuring 100% of your oil is actually filtered.
Ensuring Continuous Operations Worldwide
Direct from our manufacturing facility to your industrial site.
Proven Field Applications for Hydraulic Oil Filters
From plastic injection molding machines to heavy construction equipment, these filters are deployed wherever hydraulic reliability directly impacts the bottom line.
Manufacturing & Injection Molding
Keeps hydraulic presses operating smoothly without valve sticking, ensuring consistent cycle times and product quality.
Mobile Equipment & Construction
Heavy-duty structural support withstands the physical shocks and vibrations of excavators, loaders, and mining equipment.
Power Generation & Turbines
Maintains critical lube and hydraulic oil cleanliness to protect turbine bearings, governors, and control systems.
Need specialized filtration for a different application? Our engineering team is ready to assist.
Reliable Global Shipping & Logistics
We know that waiting for a replacement filter means costly equipment downtime. Our logistics network is optimized to get your hydraulic cartridges on-site safely and exactly when you need them.
Expedited Air Express
Partnering with top-tier global carriers like DHL and FedEx to ensure fast, predictable delivery for your urgent replacement needs.

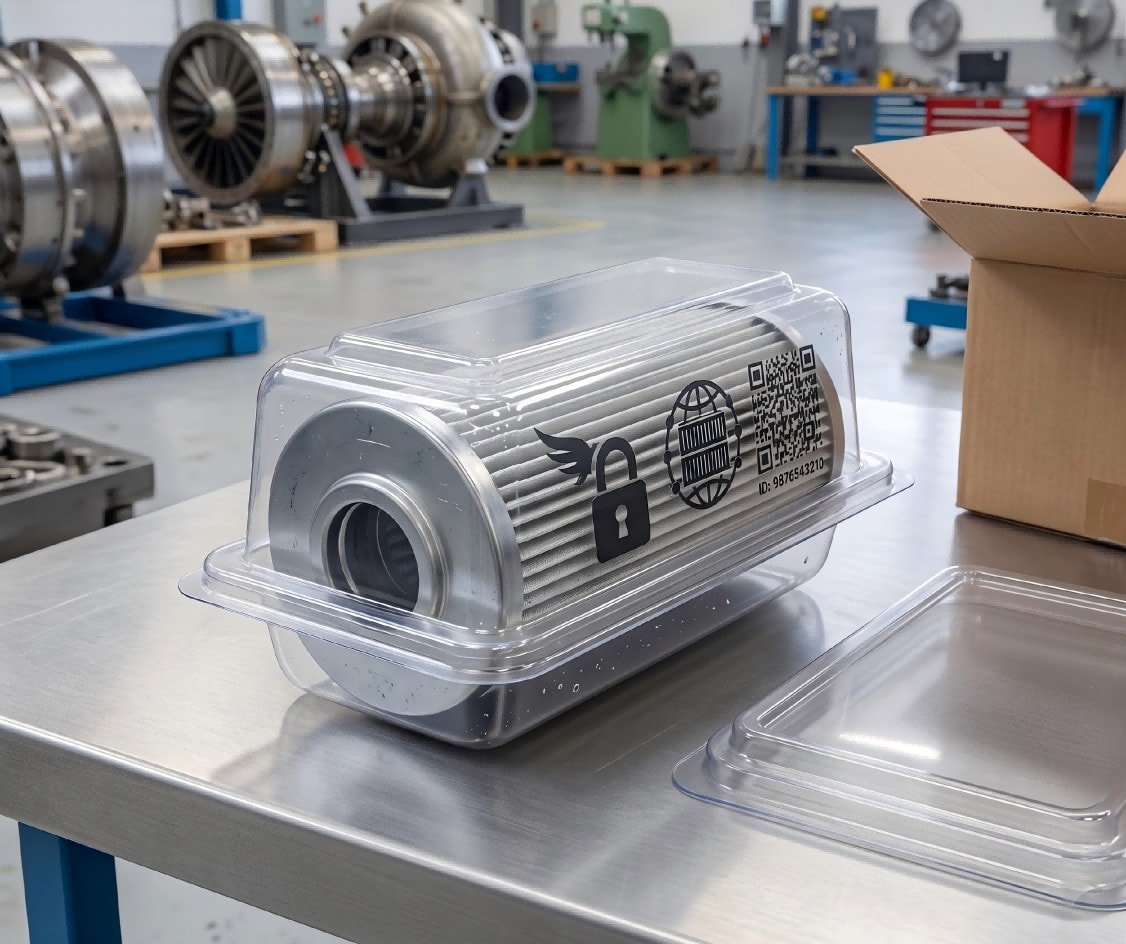

Secure Industrial Packaging
Every cartridge is sealed and packed in crush-resistant materials to protect the delicate pleats and inner cores during international transit.
Customs Clearance Support
We provide complete, accurate commercial invoices and origin documentation to prevent unnecessary hold-ups at the border.
End-to-End Tracking
Stay informed with real-time tracking updates from the moment the shipment leaves our factory floor until it reaches your loading dock.
Technical Specifications for Hydraulic Oil Filters
Review our standard operating limits below to ensure these cartridges fit safely within your system's pressure and temperature thresholds.
| Series | Micron Rating (µm) | Max Operating Pressure | Filter Media | Collapse Pressure | Application |
|---|---|---|---|---|---|
| HP-Inline | 3, 5, 10, 20 (Absolute) | Up to 420 bar (6000 psi) | Micro-Glass Fiber | 21 bar / 210 bar | High Pressure Lines |
| RT-Return | 10, 25, 50 (Nominal) | Up to 30 bar (435 psi) | Cellulose / Glass Blend | 10 bar | Return Lines / Tank Top |
| SU-Suction | 60, 125, 250 | Vacuum | Stainless Steel Wire Mesh | 3 bar | Reservoir Suction |
| HC-High Capacity | 5, 10, 20 | Up to 110 bar | Pleated Synthetic | 21 bar | Off-line / Kidney Loop |
Engineering Guide for Hydraulic Oil Filters
Clear answers to common engineering questions, helping you specify the correct media and micron rating for your next procurement.
Table of Contents: Filtration Guide
What is a Hydraulic Oil Filter Element?
At its core, a hydraulic oil filter element is the primary defense mechanism within a fluid power system. It is a porous device designed to remove insoluble particulate matter—such as metal shavings, silica sand, elastomers, and rust—from the hydraulic fluid. By maintaining target ISO cleanliness codes, these elements prevent catastrophic failure and sluggish operation of servo valves and piston pumps.
Filter Media Materials Explained
The choice of filter media dictates efficiency, pressure drop, and fluid compatibility. We engineer our products using several distinct materials:
-
Inorganic Micro-Glass (Fiberglass)
The industry standard for high-performance filtration. It offers a uniform pore structure, exceptionally high dirt-holding capacity, and excellent Beta stability across varying differential pressures.
-
Cellulose Paper
A cost-effective solution for low-pressure return line applications where nominal filtration is acceptable. Often blended with synthetic fibers to enhance strength.
-
Stainless Steel Wire Mesh
Primarily used for suction strainers and highly viscous fluids. It is cleanable, reusable, and capable of withstanding extreme temperatures and chemical exposures.
Understanding Beta Ratios (β)
Filtration efficiency is scientifically quantified using the Beta Ratio, derived from the Multi-Pass Test (ISO 16889). It represents the number of particles upstream divided by the number of particles downstream at a specific micron size. For example, a filter with a rating of β10(c) ≥ 1000 means that for every 1,000 particles of 10 microns or larger entering the filter, only 1 passes through, equating to an efficiency of 99.9%.
Maintenance & Replacement Intervals
Relying solely on scheduled time intervals for filter replacement is an outdated practice. Modern industrial systems should utilize differential pressure indicators (visual or electrical). The element must be replaced when the pressure drop across the filter reaches the bypass valve cracking pressure setting minus a safety margin. Operating a filter in bypass mode allows 100% unfiltered fluid to circulate, causing immediate damage to sensitive components.
Request Quote Now!
Factory direct pricing. Fast response.
Need immediate assistance?
Need a Custom Filtration Solution?
Provide your specifications. Get factory direct pricing in hours.
Frequently Asked Questions
Expert answers to common industrial filtration inquiries.
What is the difference between suction, pressure, and return line hydraulic filters?
How do I know exactly when to replace my hydraulic filter cartridge?
What does the Beta Ratio (ß) mean on a hydraulic filter specification sheet?
Should I choose micro-glass or cellulose (paper) filter media for my hydraulic system?
Why do hydraulic filter housings have a built-in bypass valve?
Get Sizing Support for Your Hydraulic Oil Filters
Skip the guesswork. Provide our engineering team with your fluid type, flow rate, and current OEM part number, and we will recommend a practical, cost-effective replacement strategy.
